HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying

Brand Name : Chitherm

Model Number : HRF535-02 Type

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 50 Sets/Year

Delivery Time : 90 work days

Specification : 1250*1870*1076mm(W*H*D)

Origin : China

HS Code : 8514101000

  : Support payments in USD

Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Contact Now

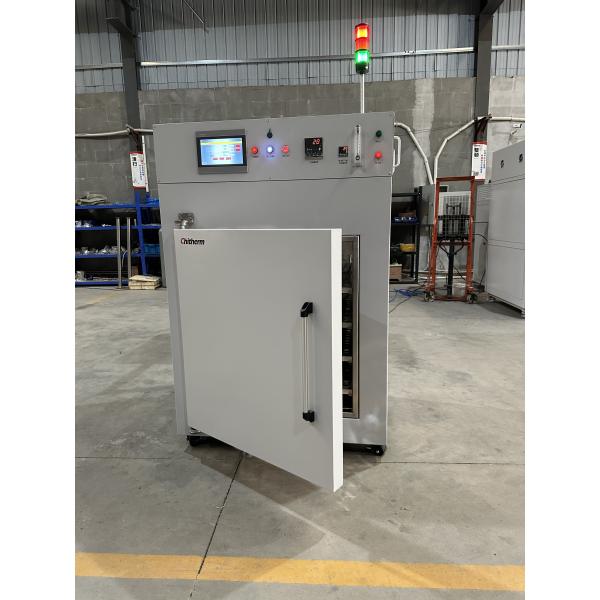

HRF535-02 Hot Air Box Furnace Industrial Electric Furnace

Professional-grade electric furnace designed for ceramic drying and industrial applications, featuring precise temperature control and nitrogen atmosphere capability.

Key Specifications
Model Number HRF535-02 Type
Dimensions (W×H×D) 1250×1870×1076mm
Effective Chamber Size 850×700×900mm
Temperature Range RT+10～200°C
Heating Elements Custom-Made Squirrel-Cage Heaters
Control Points 1 Point
Atmosphere Nitrogen
Core Features
  • Precision temperature control (±1°C stability, ±3°C uniformity @150°C empty chamber)
  • 20 groups × 20 segments programmable control
  • 4 layers of SUS304 stainless steel trays
  • Forced circulation hot air system
  • Dual compressed air/nitrogen gas source support
  • 24-240 LPM flow adjustment via glass rotameter
HRF535-02 Hot Air Box Furnace Industrial Electric Furnace Hot Air Box Furnace For Ceramic Drying
Safety & Protection
  • Triple safeguards: overtemperature, thermocouple breakage, and motor overload protection
  • Surface temperature rise <35°C compliance
  • ISO certified manufacturing
Installation Requirements
Power Supply: 14kVA three-phase (380-415V±10%)
Compressed Air: Dew point ≤-20°C
Floor Load: ≥500kg/m²
Space Requirements: Minimum 3㎡ area with 3000mm clearance
Exhaust System: >15m³/h extraction required
Applications & Usage
  • Ideal for electronic ceramics step-heating processes
  • Sensitive material debinding capability in nitrogen protection mode
  • Recommended full-load operation <8h>
  • Heat recovery systems suggested for improved energy utilization
Shipping & Payment
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Package Size 1600×1550×2250cm
Gross Weight 709kg
Payment USD transactions supported (platform-protected)
Refund Policy Claims accepted for non-shipment, missing orders, or defective products
